Hall effect measurement systems (HMS) combine a wide resistance range, high voltage capability, high magnetic field, and broad temperature range to provide the most capable electronic transport measurement systems available today.

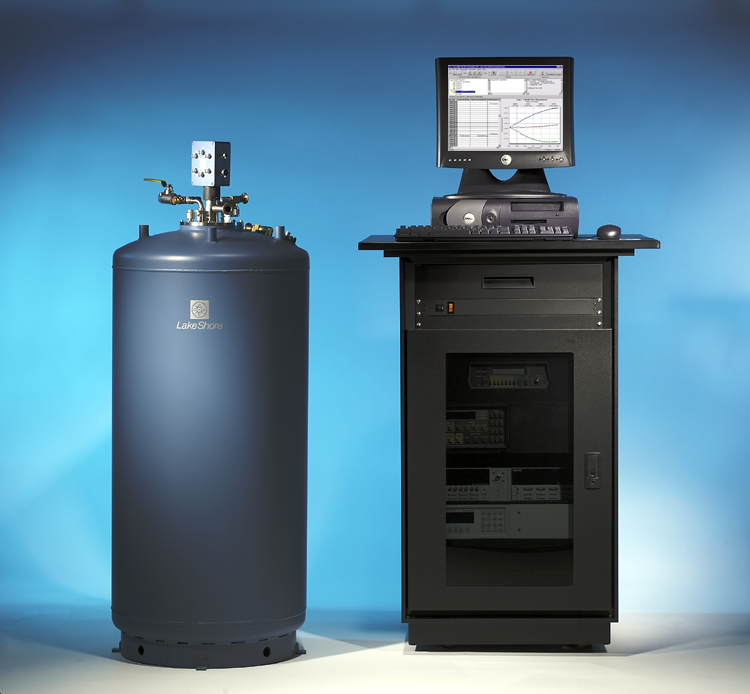

The Lake Shore 8400 Series can be used with both DC and AC field Hall measurement methodologies to facilitate the broadest range of research applications. The system includes fully integrated instrumentation, a magnet and power supply, plus software that dramatically helps you increase your research productivity and provides results that you can trust.
When used with the AC field measurement option, the system is ideal for use with emerging class of materials that typically have mobilities below 1 cm2/V s—the types of materials with electronic properties that can be difficult or impossible to measure with traditional DC field Hall methods. These include many contemporary semiconductor and electronic materials, such as photovoltaic (solar cell) and thermoelectric materials, new display technologies, and organic electronics.
The standard system is capable of DC field measurements and has a resistance range from 0.5 mΩ to 10 MΩ. Measure Hall voltage, Hall coefficient, Hall mobility, and resistivity. With options added, the system allows you to measure down to 0.5 µΩ and as high as 200 GΩ in DC fields. You can also determine carrier density and carrier mobility versus temperature.
Features of the 8400 Series
- Ideal for variable temperature measurement and mobilities from 1 to 106 cm2/V s
- Optional AC field extends mobility measurement range down to 10-3 cm2/V s
- Maximum DC fields to 1.67 T (8404) and 2.25 T (8407)
- Optional AC fields to 1.18 T (8404) and 1.31 T (8407)
- Standard resistance range of 0.5 mΩ to 10 MΩ
- High resistance option widens range to 200 GΩ
- Low resistance option significantly reduces resistance noise floor
- Temperatures from 15 K to 1273 K
- Also available as an option for the CRX-VF cryogenic probe station
