Laurell WS Series

Laurell Modular 23 – is captured as most flexible, customizeable  model that we have. It means, all these model can be upgraded, customized, and repaired in the field, with ever need to return the system. Refer to information tab below to differentiate between our 3 model of WS-Series


 ws150

Scroll down to see large image

  • Controller:650-Series
  • Max substrate size: ø150mm (5″ × 5″)
  • Max speed: 12,00 rpm
  • Body material: Solid Special Formula Natural Polypropylene or Teflon® housing with interlocking clamshell plenum
  • Water-clear ECTFE or PVC domed lid
  • NPP or Teflon® control valves / drip-free UD-3 injectors (resolution repeatability in µl) — convert your source quickly from a pump to a pressure vessel or a syringe
  • Adjustable down-flow exhaust and drain (includes 10′ of flexible duct)
  • Safety door interlock (disallows rotation and chemical dispense process chamber is open)
  • Safety door latch (requires deliberate action to open the process chamber)
  • Safety door lock (process chamber can not be opened while a program is running or during chuck rotation after program ends)


 ws200

Scroll down to see large image

  • Controller:650-Series
  • Max substrate size: ø200mm (7″ × 7″)
  • Max speed: 12,00 rpm
  • Body material: Solid Special Formula Natural Polypropylene or Teflon® housing with interlocking clamshell plenum
  • Water-clear ECTFE or PVC domed lid
  • NPP or Teflon® control valves / drip-free UD-3 injectors (resolution repeatability in µl) — convert your source quickly from a pump to a pressure vessel or a syringe
  • Adjustable down-flow exhaust and drain (includes 10′ of flexible duct)
  • Safety door interlock (disallows rotation and chemical dispense process chamber is open)
  • Safety door latch (requires deliberate action to open the process chamber)
  • Safety door lock (process chamber can not be opened while a program is running or during chuck rotation after program ends)
 ws300

Scroll down to see large image

  • Controller:650-Series
  • Max substrate size: ø300mm (9″ × 9″)
  • Max speed: 12,00 rpm
  • Body material: Solid Special Formula Natural Polypropylene or Teflon® housing with interlocking clamshell plenum
  • Water-clear ECTFE or PVC domed lid
  • NPP or Teflon® control valves / drip-free UD-3 injectors (resolution repeatability in µl) — convert your source quickly from a pump to a pressure vessel or a syringe
  • Adjustable down-flow exhaust and drain (includes 10′ of flexible duct)
  • Safety door interlock (disallows rotation and chemical dispense process chamber is open)
  • Safety door latch (requires deliberate action to open the process chamber)
  • Safety door lock (process chamber can not be opened while a program is running or during chuck rotation after program ends)

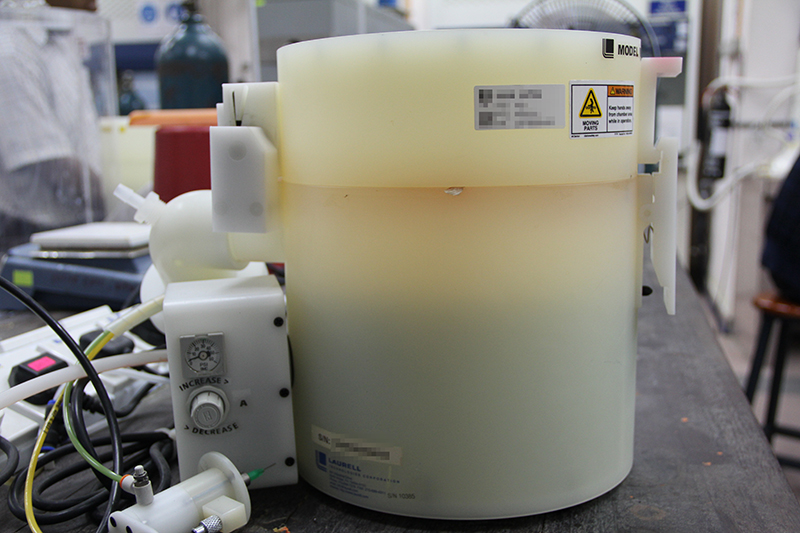

spincoater2

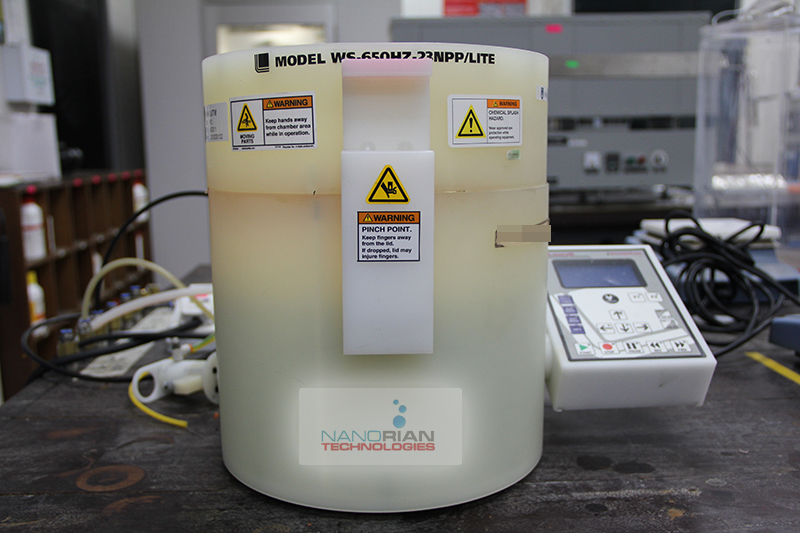

spincoater1
